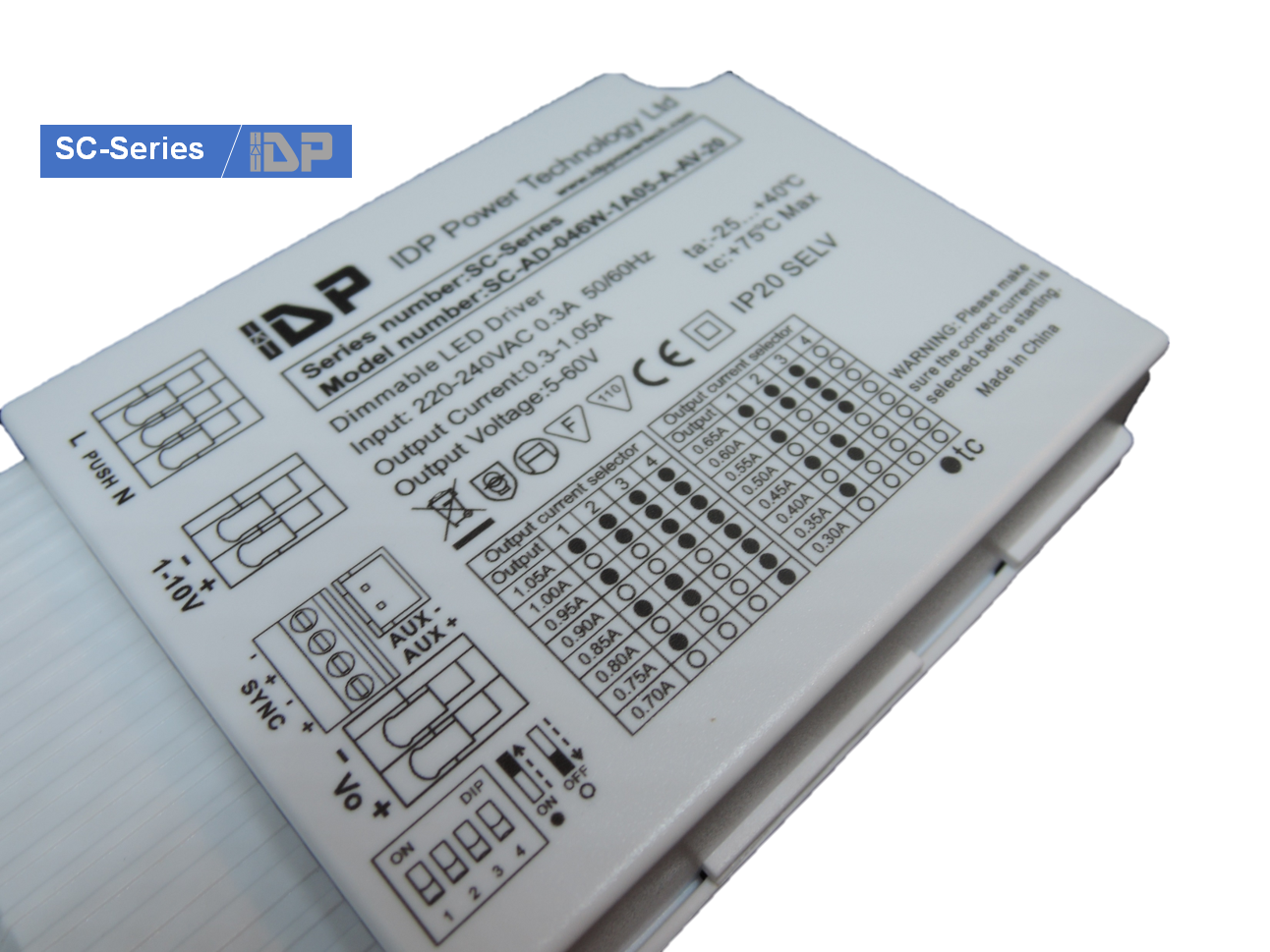

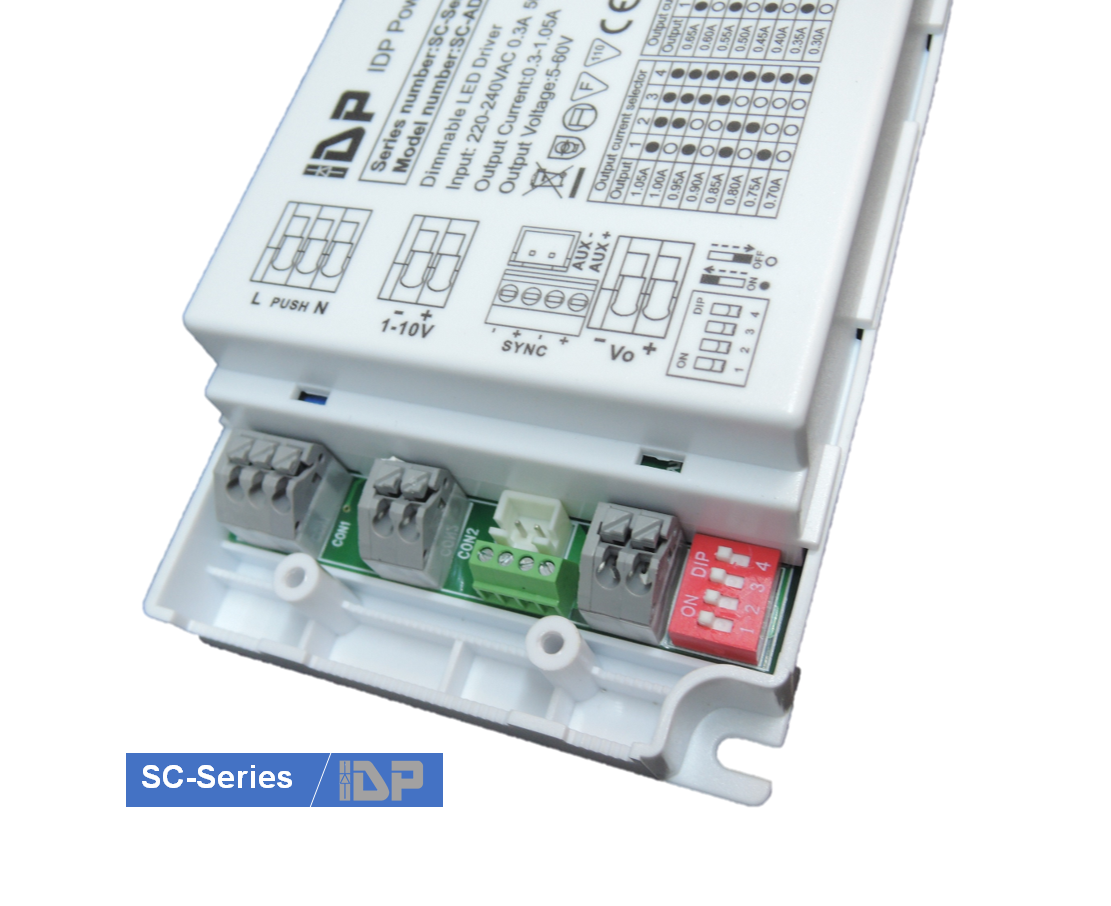

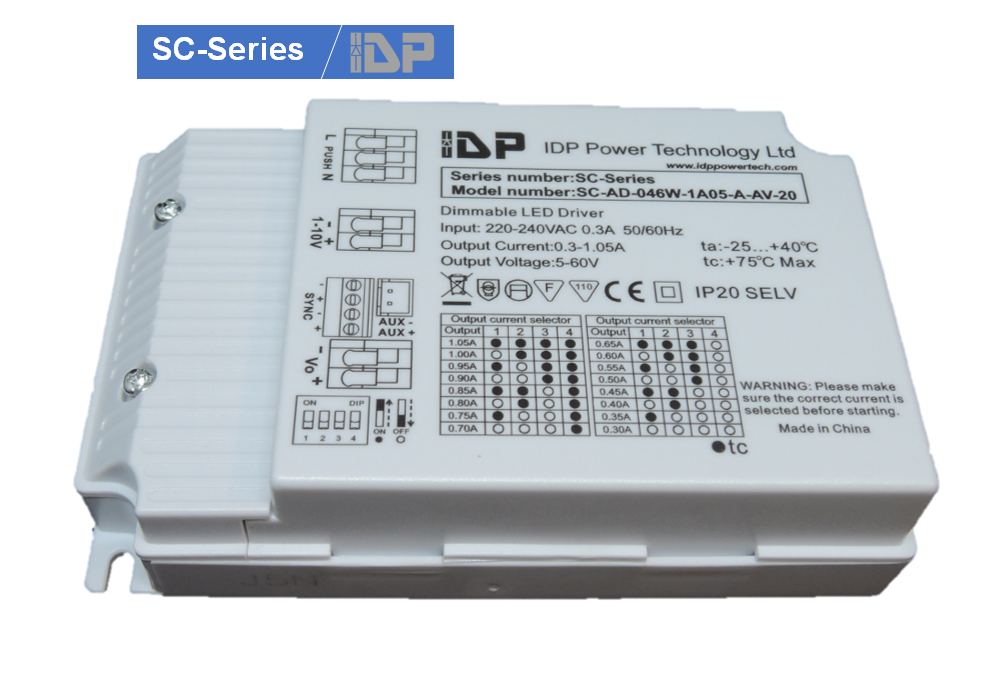

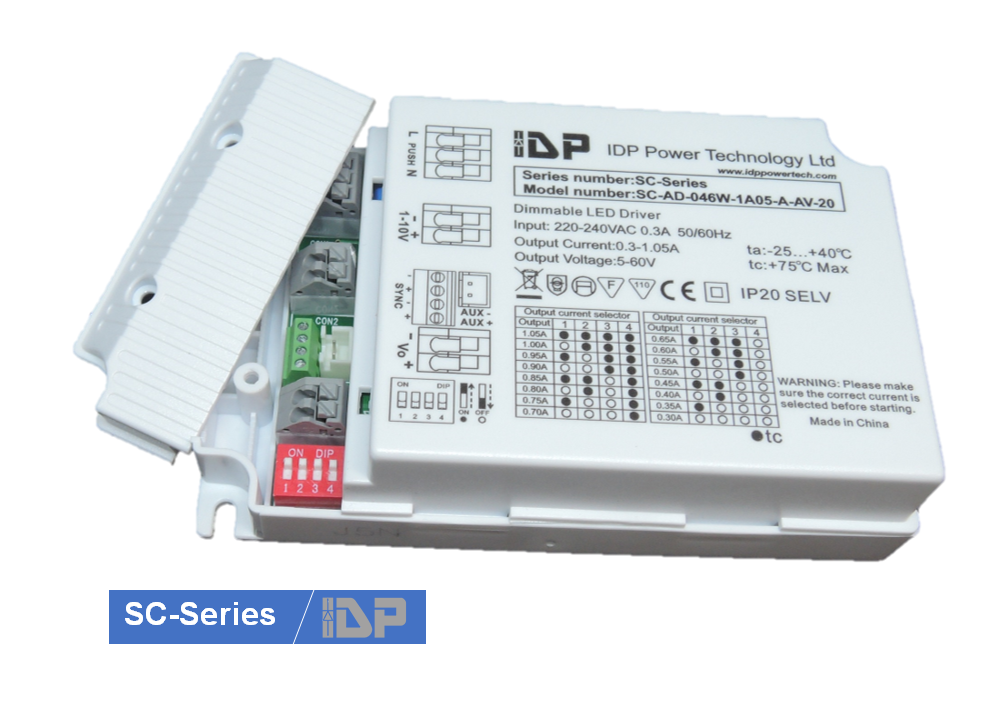

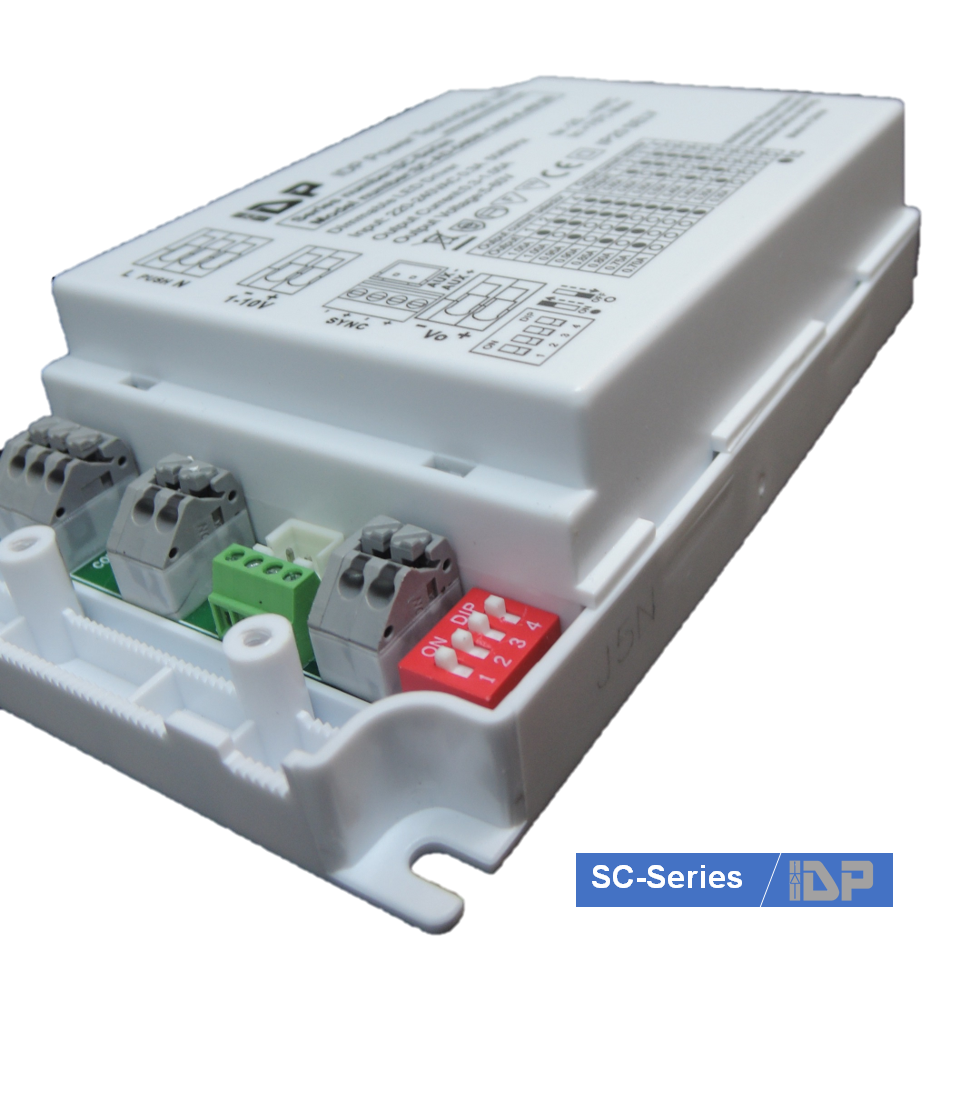

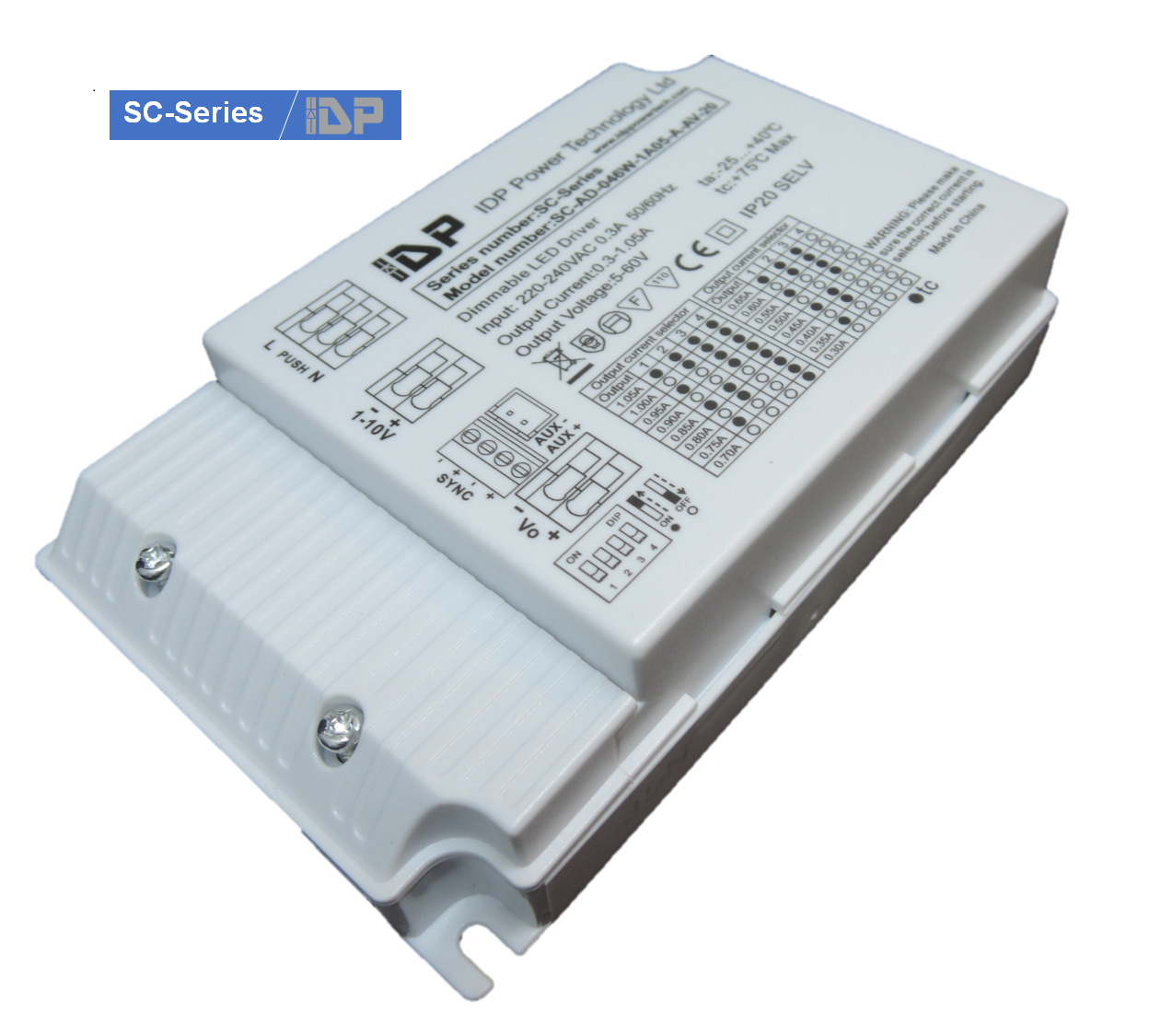

Model: SC46

Product title: In-Door Settable Current LED Driver – SC series; 46W; Compact
(part number: SC-AD-046W-1A05-A-AV-20; SC-AD-046W-1A05-A-DA-20; SC-AD-046W-1A05-A-F-20)
Description:

Dimmable Multi-Power constant current LED Driver with different dimming interface (0-10V, 1-10V, PWM, PUSH, SYNC, DALI); Output current selectable – 300mA to 1050mA, 16 steps with 50mA/step, Super wide range of output current selection; The AUX 12Vdc output to provide the drive power to other control module such as wireless module, sensor module.

Product Feature:
    • Compact shape multi-Power constant current output LED Driver
    • Active power factor control
    • IP20 independent LED driver, for indoor use
    • Nominal life 50,000hrs (at tc 65 °C with a failure rate <0.2% per 1,000hrs)
    • Selectable output current by dip switch with 16 levels selection
    • AUX 12V output for drive other control module.
    • Dimming interface (optional): 0-10V/1-10V, PUSH, SYNC, DALI
    • Output current: 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA

Click here to download product datasheet in detail.
