Model: MP60

Product title: Multi-Power Constant Current LED Driver – MP-series, 60W

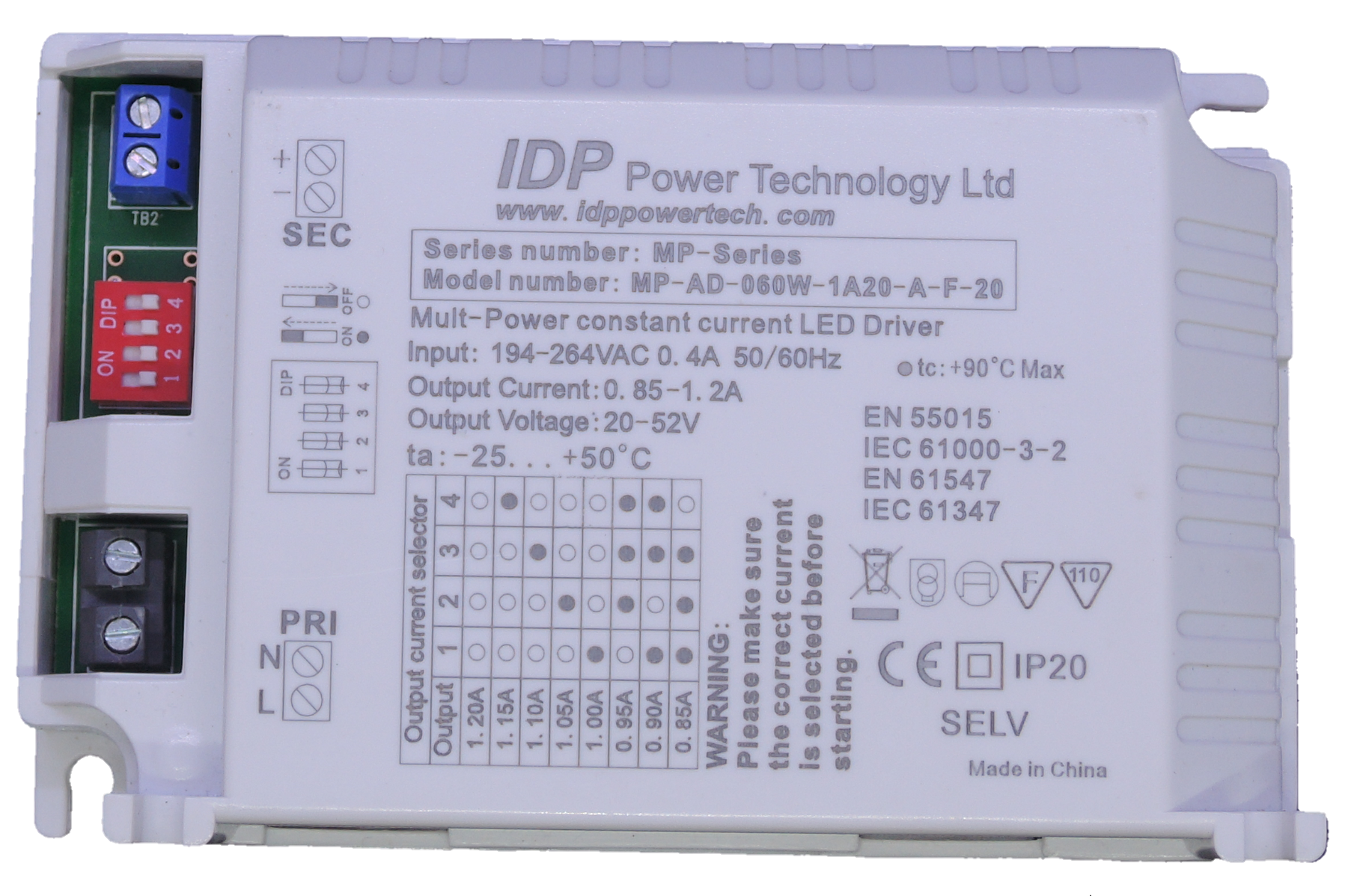

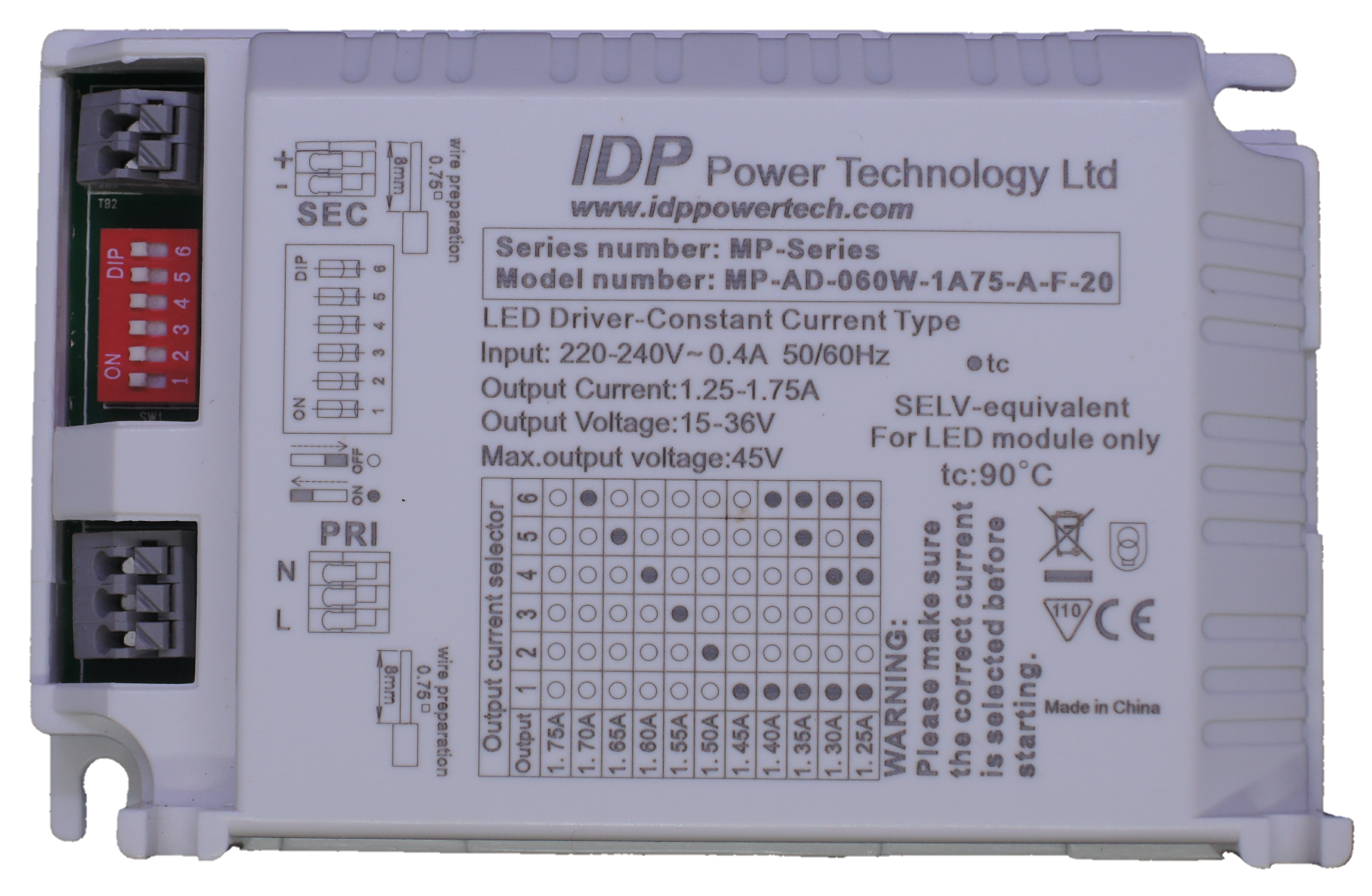

(part number: MP-AD-060W-1A20-A-F-20 and MP-AD-060W-1A75-A-F-20)
Description:

Multi-Power constant current LED Driver with different output current selection. The unique multi-power function can allow customer to select the suitable power for actual application, reduce the inventory and reduce the maintenance cost.

Product Feature:
    • Multi-Power constant current output
    • Active power factor control
    • IP20 independent LED driver, for indoor use
    • Nominal life 50,000hrs (at tc 65 °C with a failure rate <0.2% per 1,000hrs)
    • Selectable output current by dip switch
    • Output current (1200mA version): 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA
    • Output current (1750mA version): 1250mA, 1300mA, 1350mA, 1400mA, 1450mA, 1500mA, 1550mA, 1600mA, 1650mA, 1700mA< 1750mA

Click here to download product datasheet in detail.
